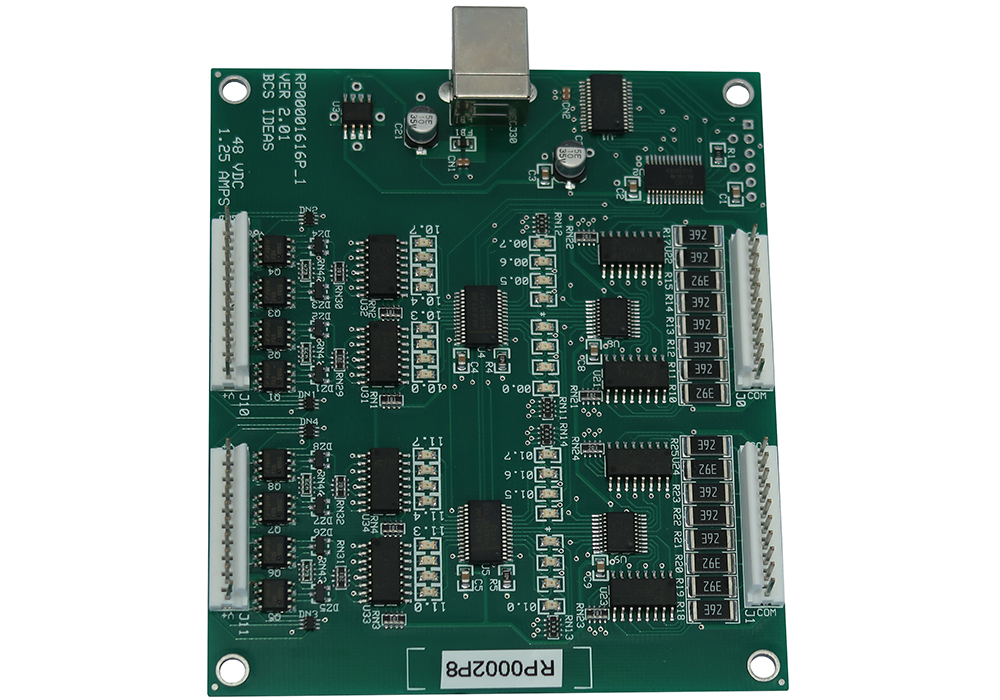

RP00001616P_1 – ROHS, 16 In/16 out P Channel MOSFET, USB to DIO PCB

RP00001616P_1 – ROHS, 16 In/16 out P Channel MOSFET, USB to DIO PCB

$60.00

These USB to DIO circuit boards are ideal for PC based control and automation of equipment including sensors, switches, relays, robotics, and industrial automation systems. They come in an OEM packag and are controlled with an easy to use DLL interface.

SKU: IA_RP3_209

Description

These USB to DIO circuit boards are ideal for PC based control and automation of equipment including sensors, switches, relays, robotics, and industrial automation systems. They come in an OEM packag and are controlled with an easy to use DLL interface.

The inputs are bi-directional. Each 4 bit nibble has a common. Placing 3 – 50Vdc on the common sets up those 4 inputs to sense 0Vdc. Placing 0Vdc on the common sets up those 4 inputs to sense 3 – 50Vdc. The inputs will also work with low voltage AC signals. All input bits are optically isolated and have an LED indicator.

Each output is capable of controlling real world devices. The N and P series are capable of driving 5-48VDC devices up to 2 Amps. The S series is capable of driving 3 to 50 Vdc/Vac devices up to 500 mAmps. Each output has an LED indicator.

The DIO series board uses screw clamp terminal blocks. The DIO boards are bus powered and will draw a maximum of 125 ma from the USB bus.

Each board comes with a 6 foot USB2.0 cable. Software examples and the manual can be found on the support page.

Additional information

Weight 3 oz
Dimensions 3.5 × 4.1 in
Number of Inputs

16

Input Type

0.100" pin spacing male header, Bi-directional digital inputs

Input Voltage

3 – 50Vac/Vdc

Number of Outputs

16

Output Type

0.100" pin spacing male header, Current Source, P Channel MOSFET, Separate output ports

Output Voltage

48Vdc

Output Current

2 Amps each channel

Power

Bus powered, No external power supply

Bus Current

Less than 125mA

Software

Easy to use DLL interface

Package

OEM
